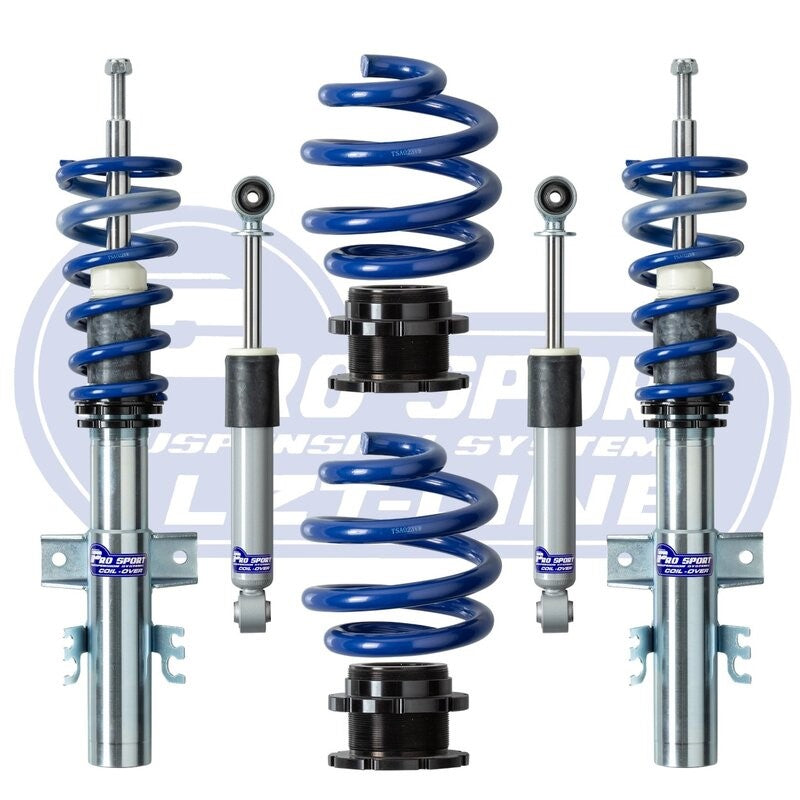

Coilover adjustable height suspension kit for VW T5 T5.1 T6 Transporter Caravelle Multivan Camper

Key Features:

Zinc-plated coilover struts for a quality finish with enhanced corrosion protection.
Blue Powder-Coat finish on the springs.
Progressively wound front and rear springs.
All-metal ride height adjusters
Engineered to give the best balance between firmly controlled handling and comfort.

Fits:

This Coilover Kit will fit;

VW Transporter T5 T26/T28/T30 models, made from 2003-2009:
2.0 / 1.9 TDI / 2.5 TDI / 3.2 V6

VW Transporter T5 Facelift T26/T28/T30 models, made from 2010-2015:
2.0 / 2.0 TSI / 2.0 TDI / 2.0 BI- TDI

VW Transporter T6 T26, T28 & T30 models, made from 2015-2019:
2.0 TSI / 2.0 TDI / 2.0 BI-TDI

Includes Kombi*, Shuttle*, Caravelle* & 4-Motion models. Not suitable for T32.

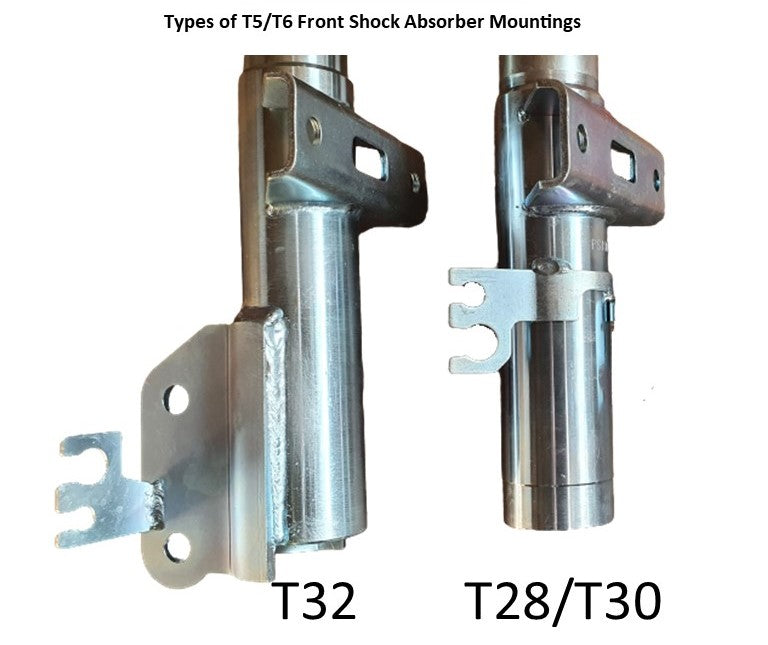

* Check front strut lower fitting if one of these models – some are fitted with T32 type mounting.

Lowering Range:

Front: 45-75mm
Rear: 45-70mm

Product Specifications in Detail:

Front Shock Absorber Type: Twin-Tube with pressurised gas
Rear Shock Absorber Type: Twin-Tube with pressurised gas
Front Spring Type: Progressively wound
Rear Spring Type: Progressively wound
Maximum Front Axle Load: 1710kg
Maximum Rear Axle Load: 1720kg
Zinc plated front Coilover units, silver coated rear shock absorbers
Blue EPS Powder Coating on the springs
Alloy adjustment and lock rings on the Coilover Units
All metal rear height adjusters with anodised finish
TUV Quality Certification: Yes

Good to Know:

These Coilovers are designed to fit on to the standard (OEM) top mounts.
No additional parts needed for installation of this Coilover Kit.
TUV Quality Certification.
1 year warranty.
We recommend having the suspension geometry checked and adjusted after fitting these Coilovers.
To ensure both optimum performance and reliability, always keep within the lowering range shown above.
Vehicles with factory-fitted sport suspension will lower by less than the stated figures

In the box:

Front Coilovers x2
Rear lowering springs coupled with ride height adjusters x2
Uprated & Shortened Rear Shock Absorbers x2
Tools for setting ride height
